Industrial SPrint SidePouch® Automated Bagger

Engineered to provide high productivity solutions for hand load through fully-automatic packaging applications, the automated Industrial SPrint SidePouch packaging system operates at 120 bags per minute in continuous mode and offers special bag features.



This advanced packing machine reduces costs while providing the widest range of industrial and retail bagging solutions.

The Industrial SPrint bagger presents a conveyor of pre-opened bags that are staged for immediate loading. A standard 60" load area provides ample space for one or more operators or infeeds, while the ergonomic design is preferred for its close proximity of product to the bag. The loading and sealing areas feature a modular design to ensure operator safety as automatic bag sealing and trimming occurs away from the bag loading area. A cost-effective 30" load area configuration is also available for lower volume applications, or production environments that require a smaller footprint. Both Industrial SPrint SidePouch systems offer continuous or intermittent bag indexing to accommodate the high-speeds of individual product or kit packaging.

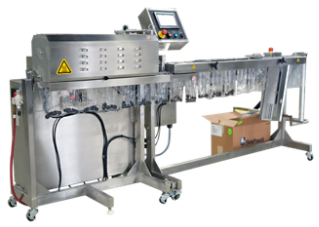

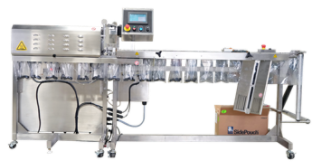

SPrint SidePouch Bagger

This automated packing system installs quickly and requires minimal operator training and maintenance. It can be easily integrated with an Industrial SPrint AutoLabel PI 412c™ Imprinter for inline imprinting, or with a variety of conveyors and infeeds for semi- to fully-automatic packaging. The standard sealing unit ensures attractive, high quality bag seals for most industrial and retail applications, while the optional medical sealer meets the stringent sealing requirements of the health care industry. Bag changeover is fast and easy to accommodate short production runs, with a single box holding up to 5,000 bags to facilitate longer runs.

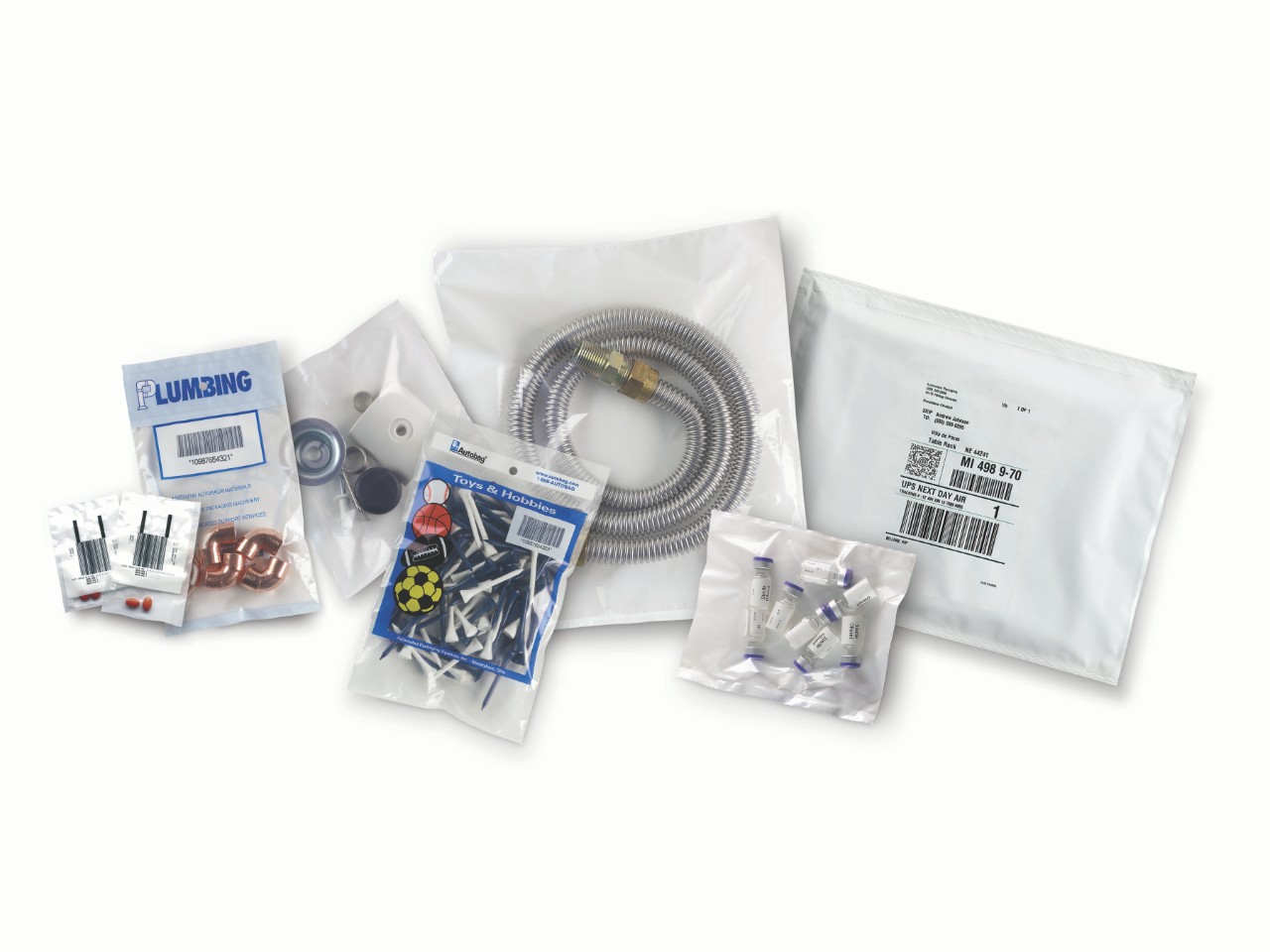

Genuine SidePouch bags are system-matched for optimum performance, and offer a variety of value-added features, such as reclosable zippers, resealable plastic bags, reinforced headers and easy-open perforations. Since the bags are pre-made, costly equipment modifications are not needed to utilize these features.

SidePouch bags are available in an assortment of materials that can be pre-printed with high-resolution graphics for unique, attractive packaging with a competitive edge. In addition, an AL 600P stand-alone thermal printer or third-party printer can be easily integrated to print additional graphics, text and barcodes directly on the bag, eliminating the need for a labeling system.

Features and Benefits

  • Safe and reliable packing machine is quick to set-up and easy to operate
  • Advances packaging productivity and offers a rapid return on investment
  • Up to 900 inches per minute (bags per minute determined by bag size)
  • Integrates with automatic infeed equipment, inline imprinters and existing production lines
  • System-matched bags offer special features, such as reclosable zippers, resealable plastic bags and more

Specifications

This is a table

Weight:

60V - 400 lbs. (181 kg)

30V - 375 lbs. (170 kg)

Electrical:

115 VAC; 60 Hz; 20

Air Feed:

45 PSI of clean, dry air

Height:

36 in. (91 cm)

Depth:

32 in. (81 cm)

Length:

60V - 168 in. (427 cm)

30V - 138 in. (351 cm)

Pass-Through:

Up to 5 in. (Up to 12.7 cm)

Bag Thickness:

1.5 to 4.0 mil

Bag Sizes:

W 2.63 to 20 in. L 3 to 18.75 in.
