AUTOBAG® Brand 600 Bagging System

Bringing flexibility, reliability and high productivity to large bag packaging applications

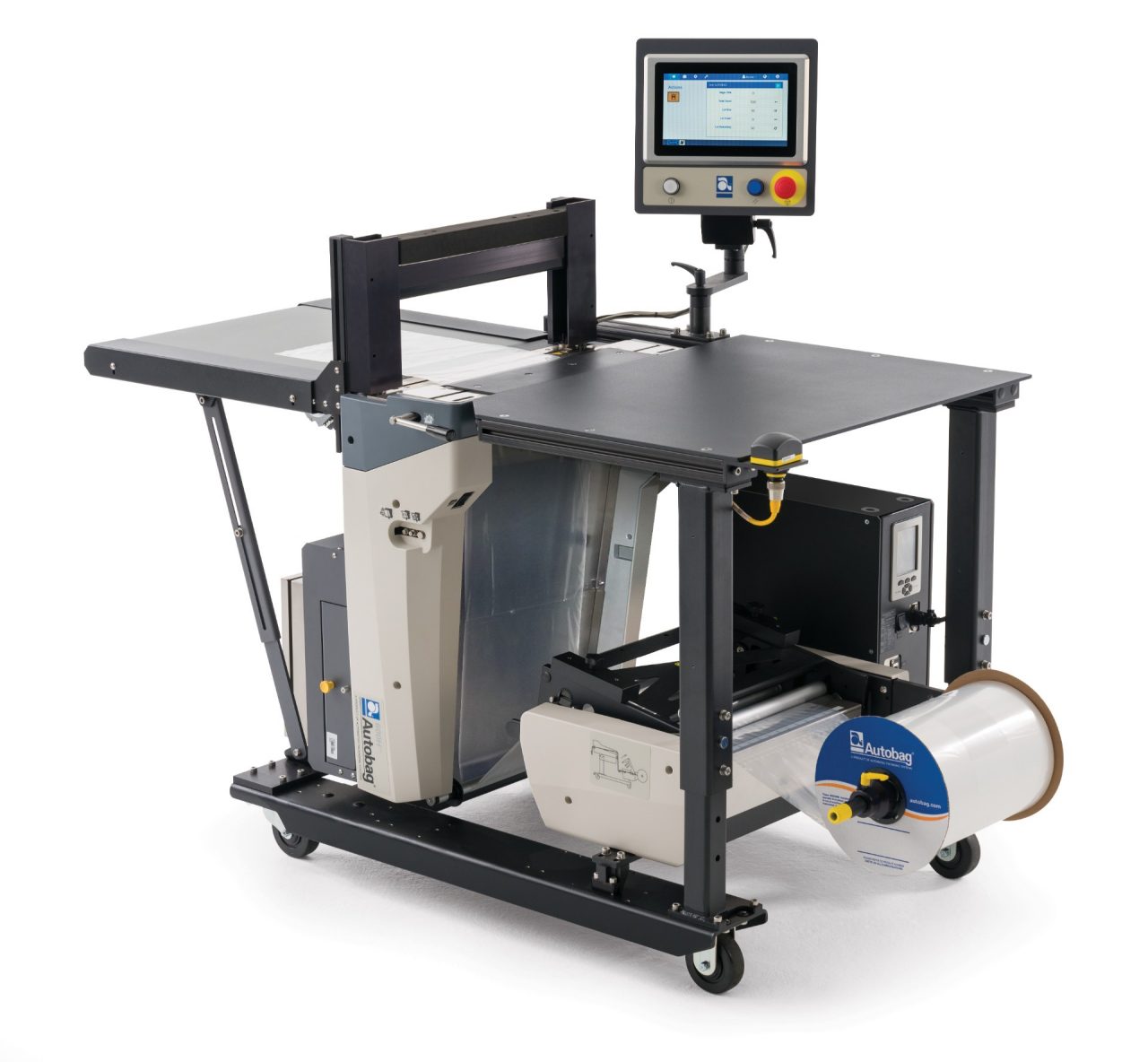

The AUTOBAG® Brand 600 High-Speed Bagging System is a technologically-advanced, wide automatic filling and sealing machine designed for reliability, flexibility and optimizing packaging throughput.

Bag Size Options
From 4” W x 16” L to 5.5” W x 27” L
(36 in. L unsupported)

Cycling Speed Capability
Over 65 bags per minute

Overview
Features and Benefits
Specifications
Downloads
Related Products

The AUTOBAG® Brand 600 High-Speed Bagging System is a technologically-advanced, wide automatic filling and sealing machine designed for reliability, flexibility and optimizing packaging throughput.

Capable of cycling at speeds over 65 bags per minute, this system delivers maximum machine uptime while lowering total cost of ownership.

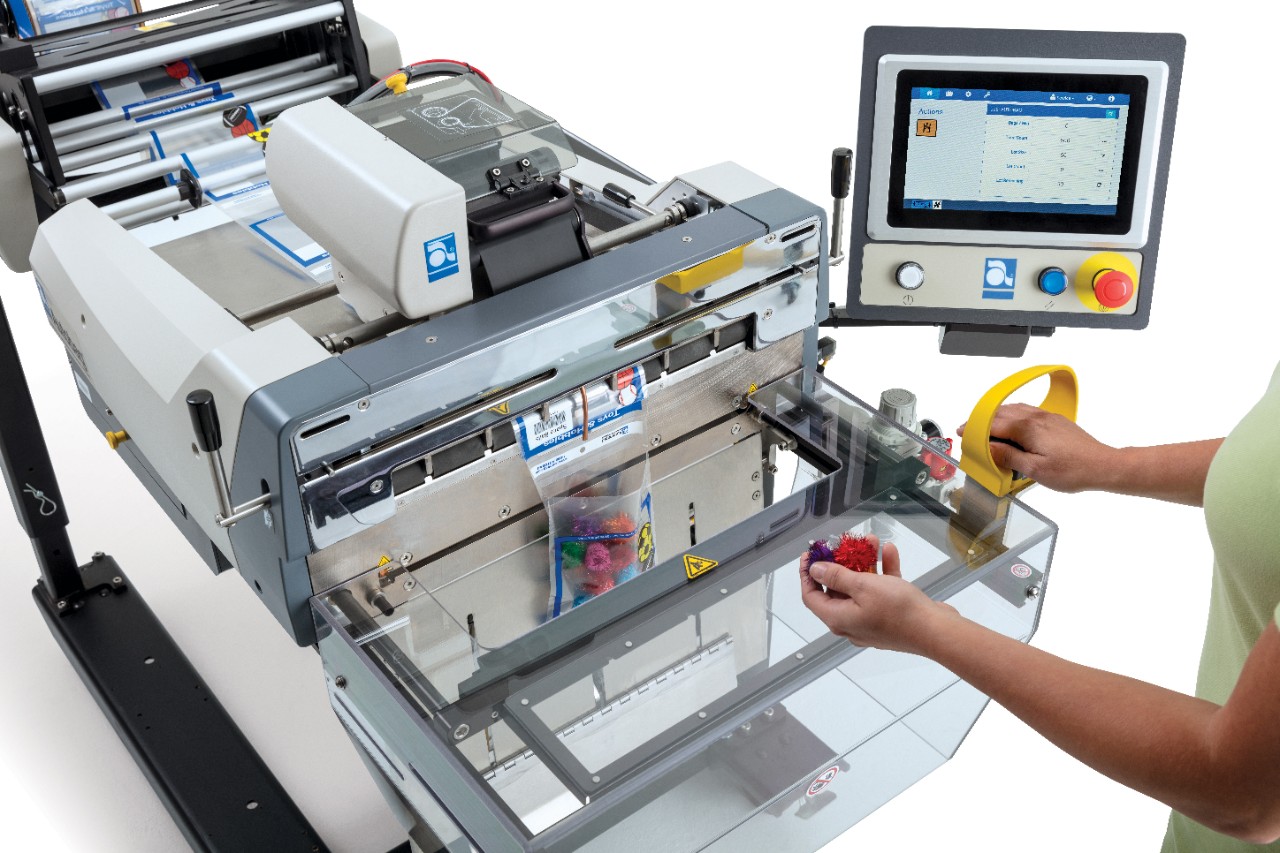

State-of-the-art engineering has led to an innovative, inherently safe design. No light curtains or double palm switches are required to achieve safe hand-load operation. The AUTOBAG^® Brand 600 is configurable for left- or right-hand access to the HMI, cycle switch and bag loading area, improving ergonomics and operator productivity.

Flexibility has been built into the system, allowing the AUTOBAG^® Brand 600 to meet the needs of any large packaging operation. The open design makes this bagger highly compatible with Autobag and third-party counters, scales and infeeds. The AUTOBAG^® Brand 600 can also be networked to facilitate full pack station integration and central monitoring. When integrated with the AutoLabel 600™ inline imprinter, a complete Print-and-Pack™ station is achieved.

A straightforward, simple design with very few moving parts reduces lifetime cost and improves reliability, while on-board diagnostics and modular components simplify maintenance.

When used with genuine AUTOBAG^® Brand pre-opened bags-on-a-roll or bags-in-a-box, the AUTOBAG^® Brand 600 ushers in the next evolution of high-quality, reliable and flexible wide bag packaging, backed by the industry’s most comprehensive engineering and field service network.

Features and Benefits

Easily integrates with inline printers, counters, scales, and conveyors for semi- to fully-automatic bagging
Multi-position unwind with tension control simplifies changeover
16" wide bag loading area is ideal for large or bulk products
AutoTouch™ Control Screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring
Processor controlled servo motors, ethernet-capable networking, and flexible mechanical design streamline integration
Compact footprint minimizes floor space
Simple height adjustment and casters for operator comfort and portability
A 45 degree tilt option is available for orienting long or delicate products
Adjustable pass-through up to 6" for maximum flexibility and packaging efficiency
Newly designed bag sealer area combined with improved temperature control and optional seal-flatteners ensure consistent, high-quality seals

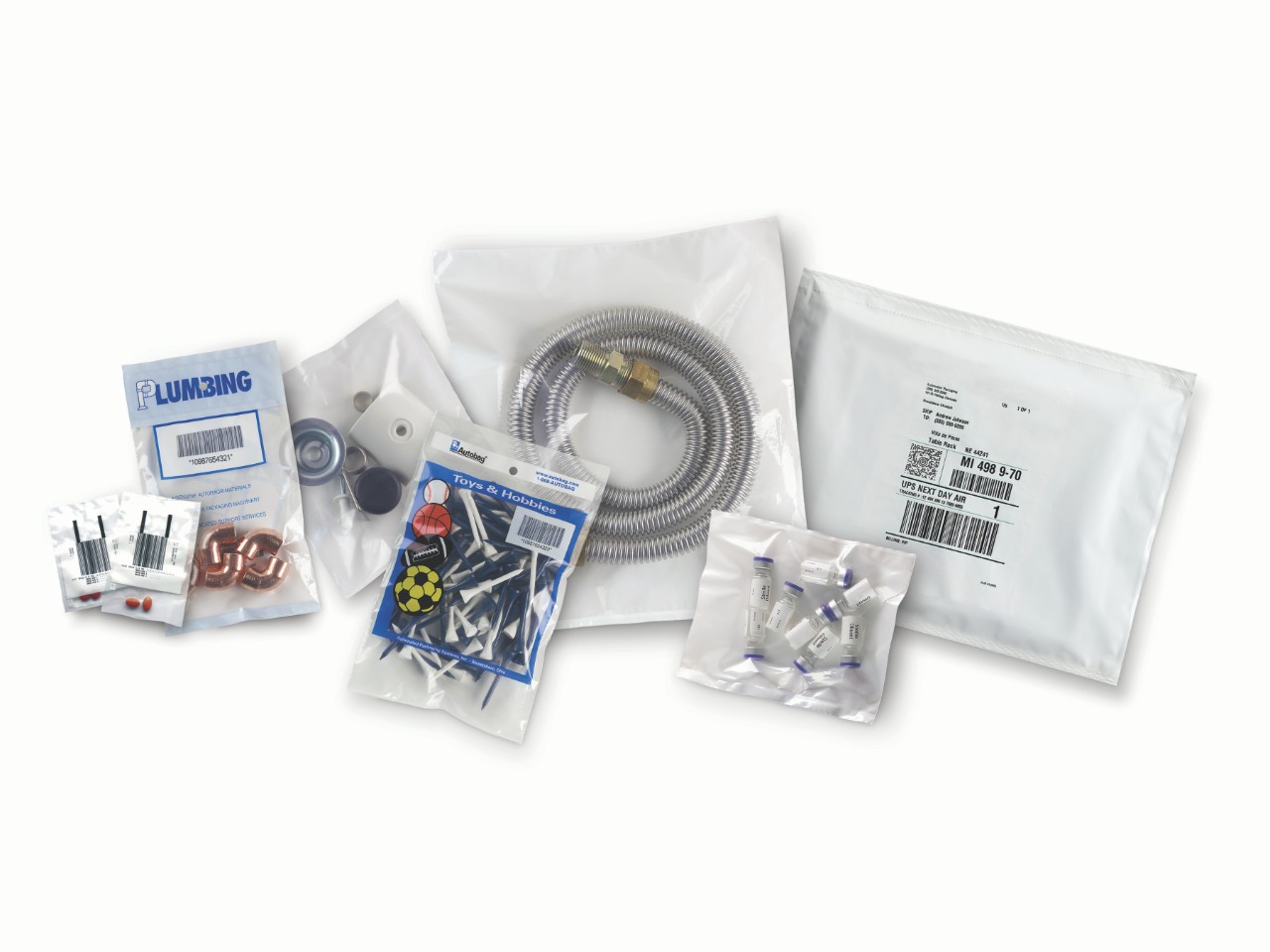

We maintain over 100 styles of stock bags and manufacture custom bags that include printing in up to 10 colors and a variety of special features
Optional Additions: range of infeed funnels, seal flatteners, raised unwind, SimpleCount™ counting system, product load tray, bags-in-a-box adapter

Specifications

This is a table

Weight:	410 lbs.
Electrical:	Universal Input: 110V to 240V VAC, 50/60 Hz
	Power Consumption: 500 Watts (VA) max
Air Feed:	5 CFM/80 psi of clean, dry air
Width:	41.6 in. (Adjustable)
Height:	37.1 to 47.1 in
Length:	69.5 in.
Pass-Through:	6 in. max
Bag Thickness:	1.09 – 4.0 mil
Bag Sizes:	W 4 to 16 in. L 5.5 to 27 in (36 in. L unsupported)
Weighing Capacity:	Up to 5 lbs. (with load shelf)
