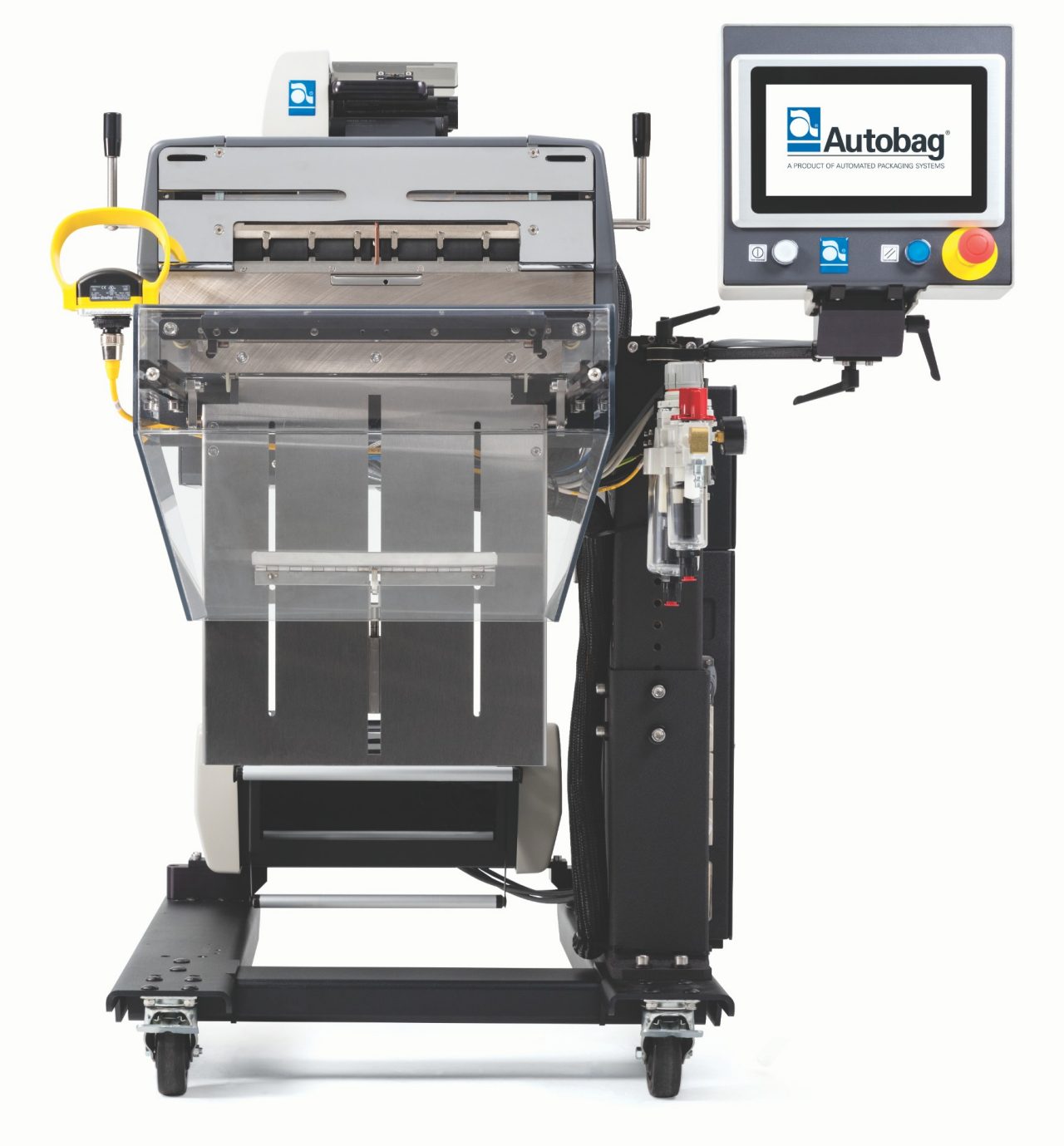

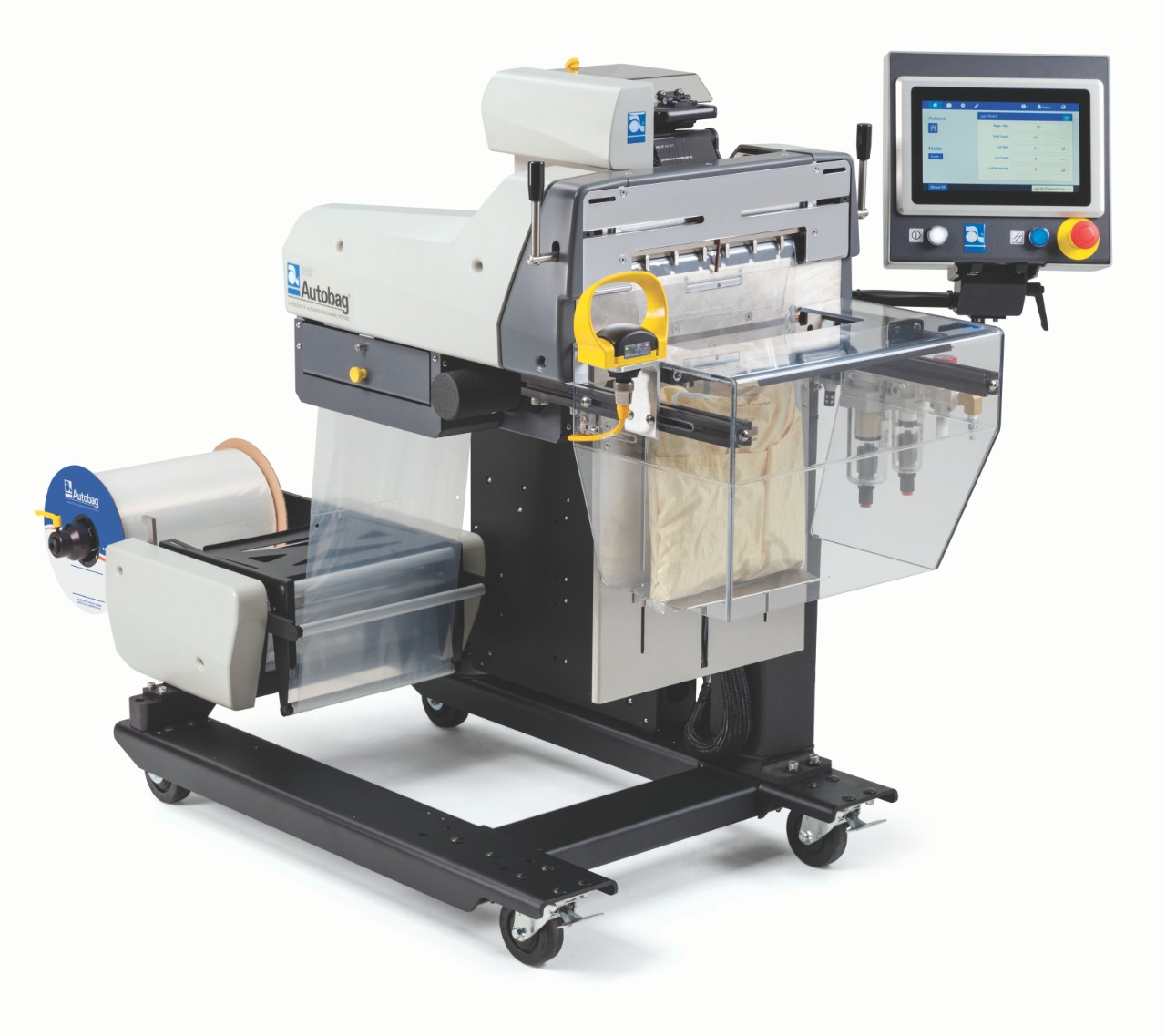

AUTOBAG® Brand 550 High-Speed Printing and Bagging System

The AUTOBAG® Brand 550 High-Speed Printing and Bagging System is a technologically-advanced, automatic filling and sealing machine designed for reliability, flexibility and optimizing packaging throughput.



Capable of cycling at speeds up to 45 bags per minute, this system was designed to maximize machine uptime while lowering total cost of ownership.

Next-bag-out printing is achieved with an advanced thermal transfer imprinter positioned directly over the next bag to be loaded. This ensures accuracy and efficiency in applications that require frequent product and label changeovers, prevents product queuing and eliminates a separate labeling operation.

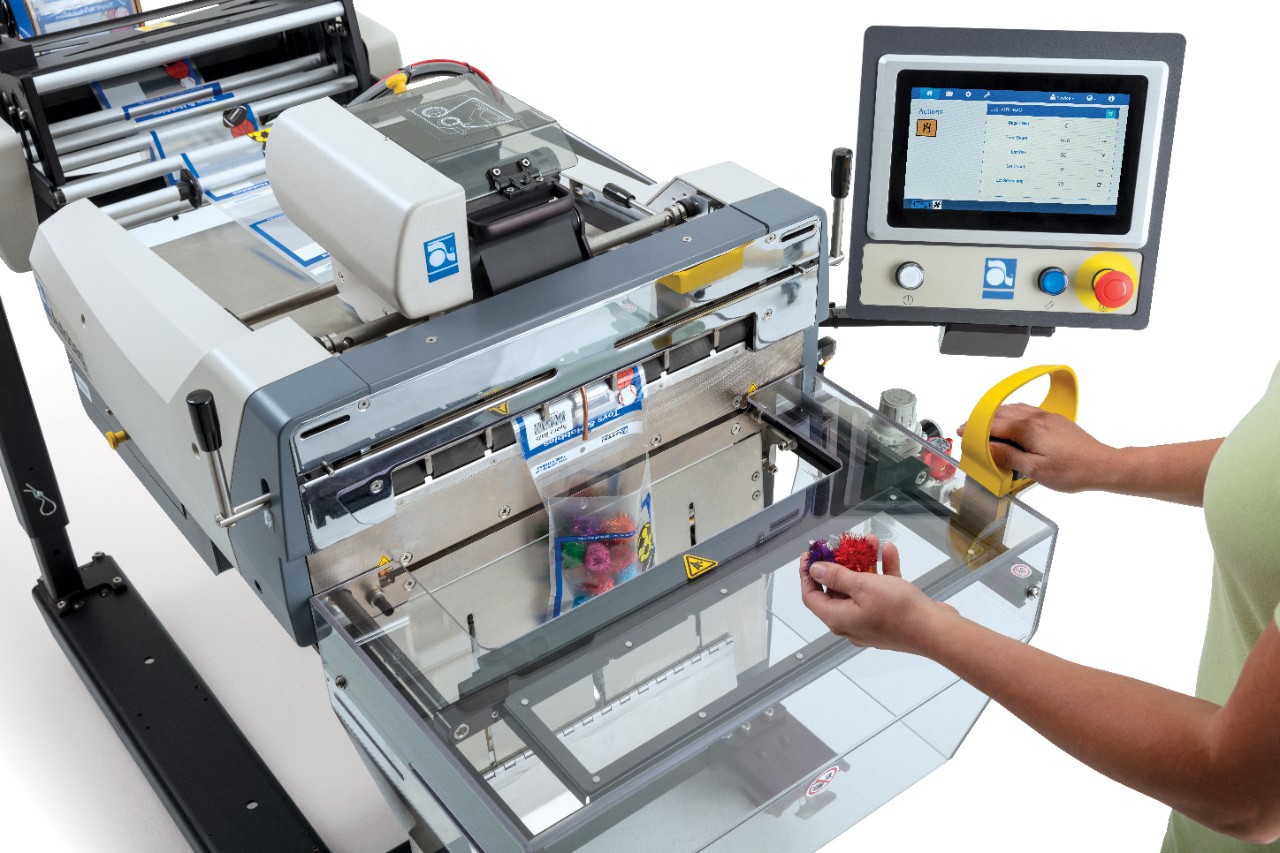

State-of-the-art engineering has led to an inherently safe and flexible design. No light curtains or double palm switches are required to achieve safe hand-load operation. The AUTOBAG® Brand 550 is configurable for left- or right-hand access to the HMI, cycle switch, and ribbon and bag loading areas, improving ergonomics and operator productivity. Plus, the AUTOBAG® Brand 550 can be networked to facilitate full pack station integration and central monitoring. A 45 degree tilt option is available for orienting long or delicate products.

A straightforward, simple design with very few moving parts reduces lifetime cost and improves reliability, while on-board diagnostics and modular components simplify maintenance.

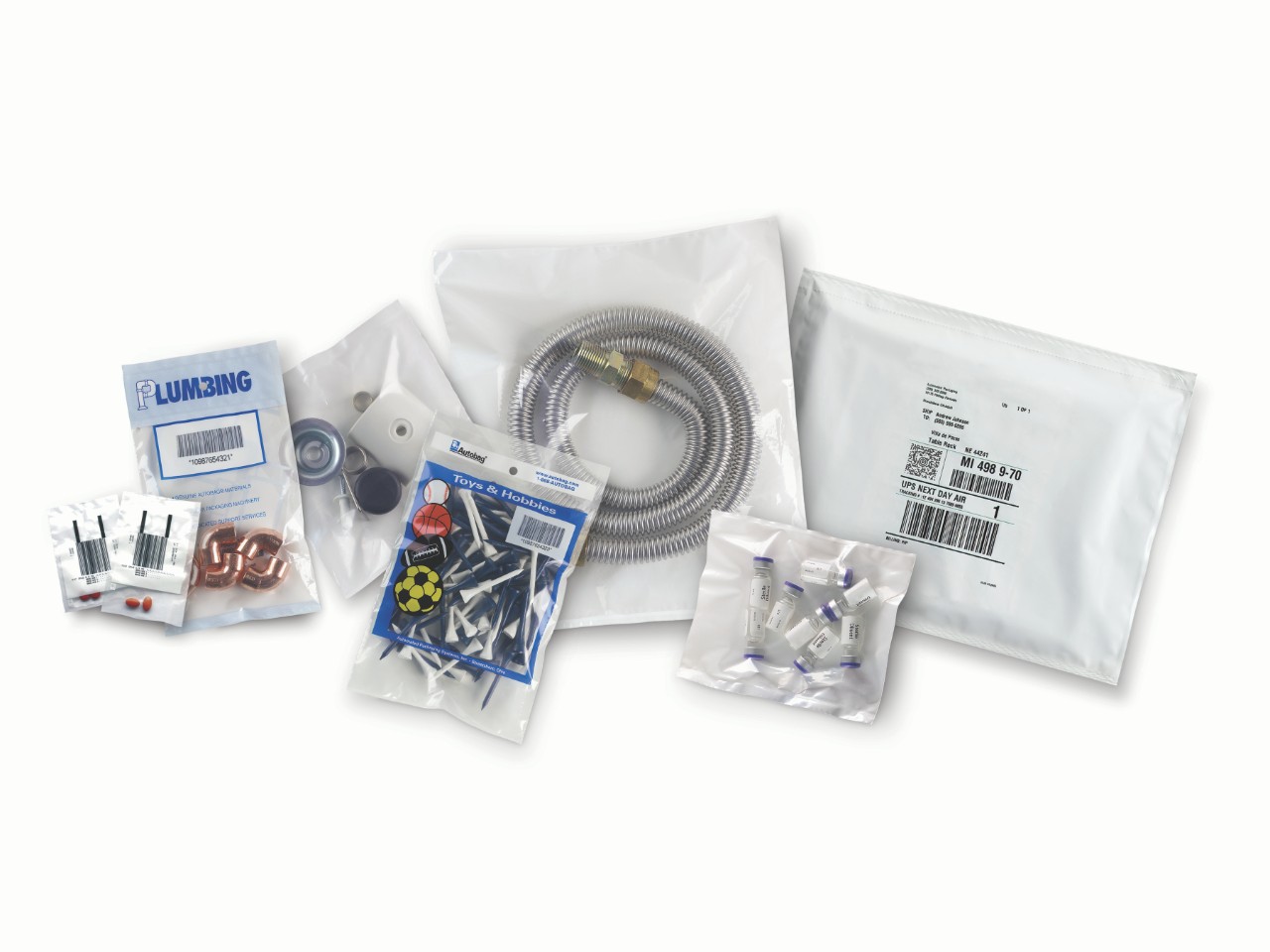

When used with genuine AUTOBAG® Brand pre-opened bags-on-a-roll or bags-in-a-box if applicable, and AutoLabel Thermal Transfer Ribbon, the AUTOBAG® Brand 550 ushers in the next evolution of high-quality, reliable and flexible bag packaging, backed by the industry’s most comprehensive engineering and field service network.

Features and Benefits

  • Next-bag-out printing prevents product queuing and reduces waste
  • Multi-position unwind with tension control simplify changeover
  • Newly designed bag sealer area combined with improved temperature control and optional seal-flatteners ensure consistent, high-quality seals
  • AutoTouch™ Control Screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring
  • Processor controlled servo motors, Ethernet-capable networking, and flexible mechanical design streamline integration
  • More bag size options; from 2" W x 5" L to 12" W x 20" L supported (36" long unsupported)
  • Processor controlled servo motors, ethernet-capable networking, and flexible mechanical design streamline integration
  • Compact footprint minimizes floor space
  • Simple height adjustment and casters for operator comfort and portability
  • A 45 degree tilt option is available for orienting long or delicate products
  • Easily integrates with third-party systems for mail order fulfillment and ecommerce applications
  • Modular components and dedicated service access simplify maintenance and repairs to maximize uptime
  • Adjustable pass-through up to 5" for maximum flexibility and packaging efficiency
  • Optional Additions: range of infeed funnels, seal flatteners, raised unwind, SimpleCount™ counting system, bags-in-a-box adapter

Specifications

This is a table

Weight:

390 lbs.

Electrical:

Universal Input: 110V to 240V VAC, 50/60 Hz

Power Consumption: 600 Watts (VA) max

Air Feed:

5 CFM/80 psi of clean, dry air

Width:

37.6 in. (Adjustable)

Height:

37.1 to 47.1 in.

Length:

64.5 in.

Pass-Through:

5 in. max

Bag Thickness:

1.09 to 4.0 mil

Bag Sizes:

W 2 to 12 in. L 5 to 20 in. (36 in. L unsupported)

Weighing Capacity:

Up to 5 lbs. (with load shelf)
