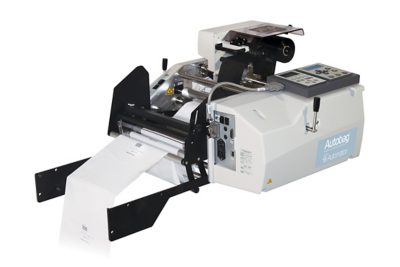

AutoLabel 500P™ Thermal Transfer Printer

AutoLabel 500P™ Thermal Transfer Printer



The AutoLabel 500P™ thermal transfer printer enables inline printing of graphics, text and bar codes directly on the AUTOBAG® bag, eliminating the need for a separate labelling operation, simplifying maintenance and saving on consumable costs.

Compared to previous models, the AutoLabel 500P offers up to 600 dpi print resolution and delivers improved print quality throughout the entire print speed range.  Customers will experience even more consistent print registration and more reliable bag sensing due to improved bag web flow into and out of the printer and we have also refined our design to deliver even greater accessibility for reloading ribbon consumables and maintenance.  A 3rd Generation Ribbon Saver feature further minimises empty space between labels, reducing waste and increasing effective ribbon roll capacity.

This printer supports both linear and 2D bar codes in a wide variety of symbologies for maximum flexibility in product identification, tracking and compliance labelling. Resident and downloadable fonts are ideal for lot or date codes and other human-readable product information; while high resolution graphics printing allows visual verification and branding on the package, as well. The AutoLabel 500P prints labels up to 100 mm wide x 500 mm long.

System-matched AutoLabel Thermal Transfer Ribbon resists scratching, smearing and flaking for durable, crisp, high quality labels. These thermal transfer ribbons extend printhead life and are specially made for use on poly bags.

 The AutoLabel 500P uses AutoLabel Designer™ label creation software, which makes it easy to design and manage custom labels. Enhanced database connectivity enables networked label storage, sharing and printing.

When paired with the AUTOBAG® 500™ bagging system, a complete Print-n-Pack™ system is achieved.

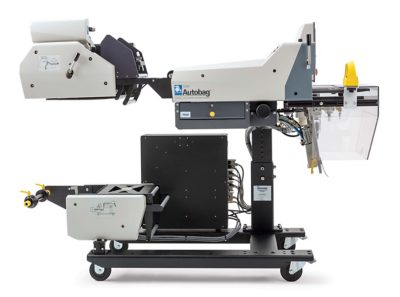

AutoLabel-500 Left Dimension

Features and Benefits

  • Fully integrated packaging is achieved by combining the 500P™ with the 500™ bagger, along with AUTOBAG® brand or third party scales, counters or conveyors
  • Available in 203, 300 and 600 dpi resolution
  • Print Speeds up to 300 mm per second (600 dpi up to 15 cm per second)
  • Improved bag web flow for tighter registration and more reliable bag sensing
  • No air required, minimal electrical requirements
  • More flexible, accessible design for ribbon loading and maintenance
  • System-matched AUTOBAG® brand pre-opened bags, AutoLabel Thermal Transfer Ribbon and Autolabel Design Software
  • AutoLabel Thermal Transfer Ribbons ensure the highest print quality on AUTOBAG® brand bags and extend printhead life
  • Resident Linear Bar Codes: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State
  • Resident 2D Bar code Symbologies: MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar

Specifications

This is a table

Weight:

184 kg with AUTOBAG® 500; 25 kg alone

Electrical:

100V to 240V VAC, 50/60 Hz

Power Consumption: 800 Watts with AUTOBAG® 500 bagger;

300 Watts (VA) alone

Air Feed:

No air required

Width:

955 mm  (with AUTOBAG® 500 bagger)

Height:

942 to 1196 mm  (with AUTOBAG® 500 bagger)

Length:

1638 mm  (with AUTOBAG® 500 bagger)

Label Size:

Up to 100 mm wide; up to 500 mm long
